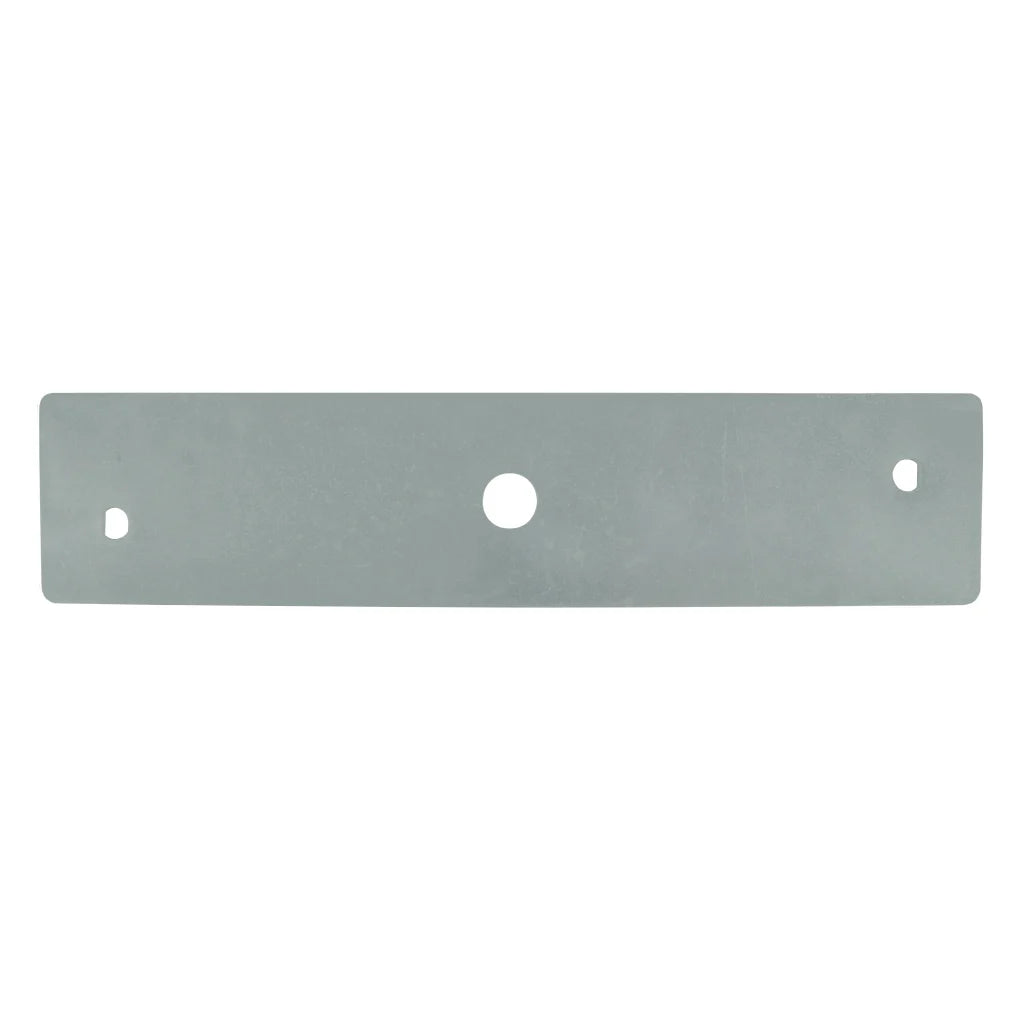

Toro Ride On Mower Blade DMP_BLH7863

Safeguard your mower’s engine and spindles with this Australian-Made Swing Back Blade Conversion Carrier Bar, specifically designed for Toro 42" TimeCutter and RZT models.

This heavy-duty conversion bar allows you to swap out rigid standard bar blades for a swing-back blade system. By allowing the blades to pivot upon impact with rocks, roots, or debris, this system significantly reduces the risk of bent crankshafts and expensive spindle repairs.

Product Specifications
Type: Swing Back Blade Conversion Carrier Bar (Flat)

Centre Hole: 5/8" (15.875 mm) Round

Length: 11 7/16" (290 mm)

Thickness: 5 mm (Premium Grade Steel)

Mounting Distance: 9.574" (243.17 mm) "D" hole to "D" hole

Deck Size: 42" (1067 mm)

Origin: Australian Made

Quantity: Sold individually (2 bars required for a full 42" cut set)

Compatibility & Fitment
This carrier bar is engineered as a precision fit for the following Toro Zero Turn (ZTR) models:

Fits Models:
Toro TimeCutter Z Series: Z420 (2005), Z4200 (2007–2010), Z4202 (2009–2010).

Toro TimeCutter Z530: (2006–2007).

Toro RZT Series: RZT420H (2008–2009).

Conversion & Accessory Guide
To complete your setup, you will need to order blades and bolts separately. We recommend these configurations:

The Complete Setup: Order 2 of these carrier bars + 2 of our BRC5543 (Swing Back Blade & Bolt Combo Packs).

Individual Components: Use with BLS3653 Blade Sets (2 required) and BBN3722 Bolt Sets (2 required).

Alternative Blade Options:

For a Standard Bar Blade option, use: BLR7544 (2 required).

For a Copperhead™ Mulcher Bar Blade option, use: BLR8202 (2 required).

Important Note
Set Requirements: These carrier bars are sold as single units. Since the 42" Toro deck is a two-spindle system, please order a quantity of 2 to convert your entire machine.
