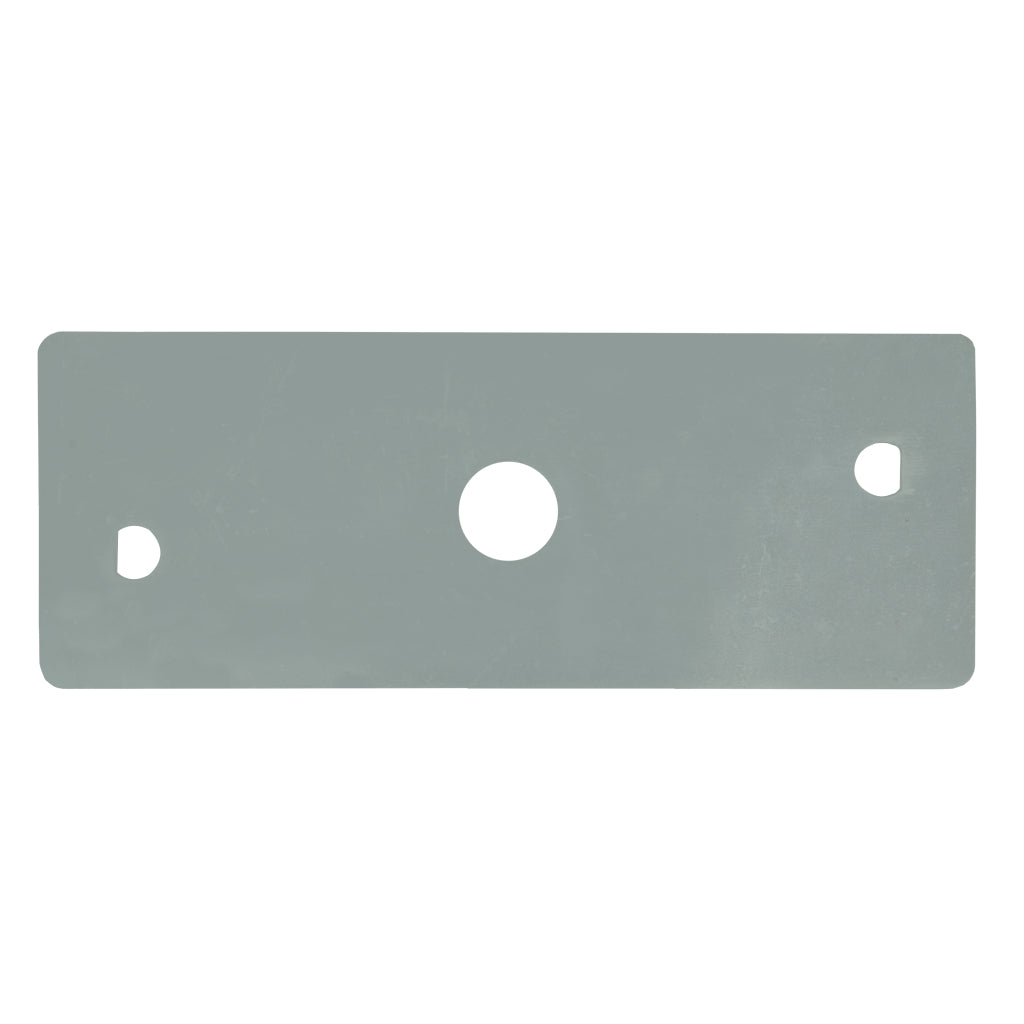

Toro Ride On Mower Blade Carrier Bar DMP_BLH7861

Upgrade your Toro TimeCutter Z with this Australian-made Swing Back Blade Conversion Carrier Bar. Specifically designed for 50" decks, this high-quality conversion bar allows you to switch from a traditional standard bar blade to a swing-back blade system.

The primary advantage of a swing-back system is the superior protection it provides for your mower's engine and spindles. If the blades strike a solid object, they simply pivot back, absorbing the impact and preventing the catastrophic shaft and spindle damage often caused by rigid bar blades.

Product Specifications

• Type: Swing Back Blade Conversion Carrier Bar (Flat)

• Centre Hole: 5/8" (15.875 mm) Round

• Length: 6 11/16" (170 mm)

• Thickness: 5 mm (Heavy Duty Steel)

• Mounting Distance: 5.322" (135.17 mm) "D" hole to "D" hole

• Deck Size: 50" (1270 mm)

• Origin: Australian Made

• Quantity: Sold individually (3 bars required for a full 50" cut set)

Compatibility & Fitment

This carrier bar is a precision fit for the following Toro Zero Turn (ZTR) models:

Fits Models:

• Toro TimeCutter Z Series: Z5000, Z5020, Z5030, Z5035, Z5040, Z5060.

Important Note

Buying Guide: These carrier bars are sold as single units. Because the Toro TimeCutter 50" deck is a three-spindle system, you must order a quantity of 3 to convert your entire mower.
